Sufix NanoBraid : 12lb Braid

Sufix NanoBraid 12lb Braid

Sufix NanoBraid® is built with a wide angle braiding technology that creates higher tension on the braiding process resulting in a tight weave and super strong, silky smooth line.

Three times stronger than other lines in the category
Tight weave
Super strong
Silky smooth Abrasion resistance
Superior knot and shock strength
Extremely sensitive

https://www.rapala.com/us_en/nanobraid

Key Statistics

Measured Average Diameter: .298mm (186% on stated .16mm)
Out of Roundness: .18mm (60.4% variation in diameter)
Measured Breaking Strain: 23.97lbs (199.75% of rated 12lbs)
Abrasion Breaking Strain: 8.9lbs (37.13% of max break)
FG Knot Breaking Strain: 20.01lbs (83.48% of max break)

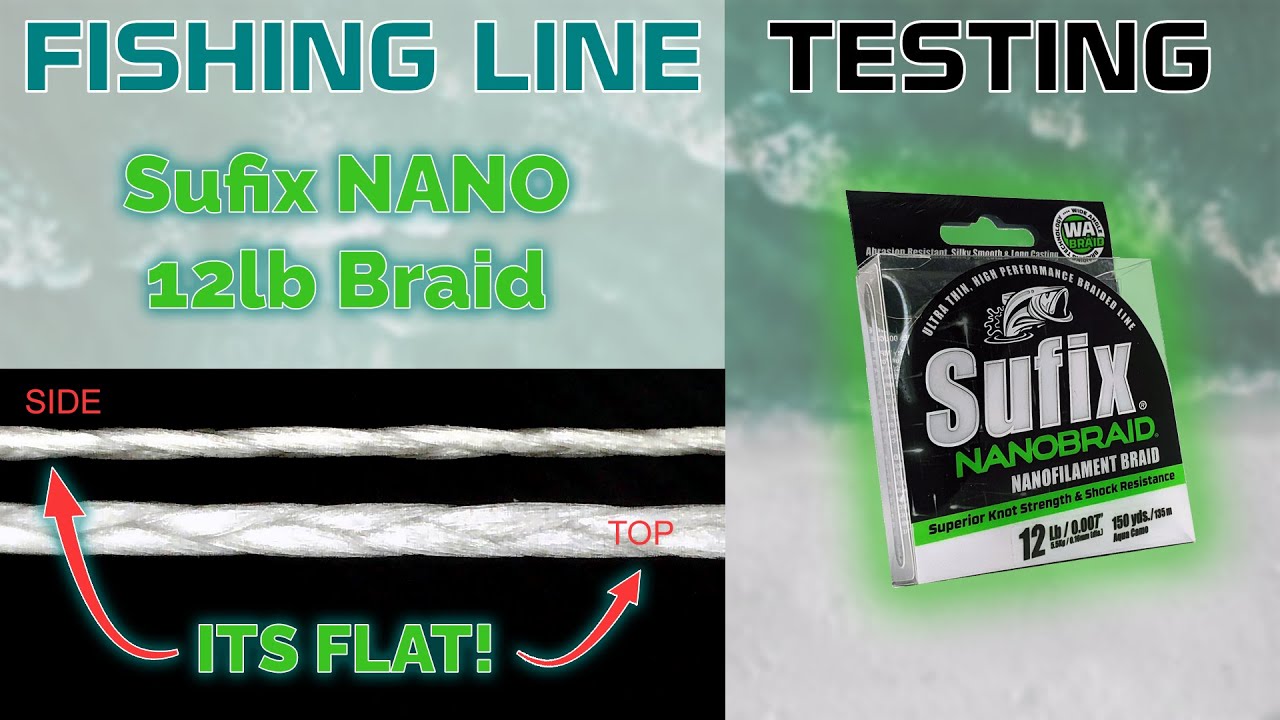

Very unique construction, being what appears to be an x3 braid. This creates a line that seems to be very flat.

Both maximum tensile strength and abrasion tensile strength were below average. FG Knot strength was quite good, and is actually 3rd out of all lines tested as a percentage of maximum breaking strain.

Testing Process

Key Line Statistics

Attribute	Value
Brand	Sufix
Name	NanoBraid
Web Site	Visit Website
Rated Strength (lbs)	12
Date Tested	19 August 2023
Credit to	Line Laboratory
Strands	3
Cost $AUD	24.78
Spool Quanity (m)	135
Quoted Diameter (mm)	0.16
Measured Average Diameter (mm)	0.298
Diameter Quoted vs Measured (%)	186.25
Minimum Diameter (mm)	0.194
Maximum Diameter (mm)	0.374
Break Max Average (lbs)	23.97
Claimed vs Actual Breaking Strain (%)	199.78
Tensile Strength (PSI)	222470
Tensile Rank	97
Abrasion Break Max Average (lbs)	8.9
Abrasion Break vs Max Break Strain (%)	37.12
Abrasion % of Maximum Rank	25
Abrasion Tensile Strength PSI	82603
Abrasion Tensile Rank	83
FG Break Max Average (lbs)	20.01
FG Break vs Max Break Strain (%)	83.47
FG % of Maximum Rank	12
FG Tensile Strength PSI	185717
FG Tensile Rank	69

Time	Test1	Test2	Test3	Average	Rated
0,0	0,00	0,00	0,00	23,97	12
0,1	0,34	0,25	0,33	23,97	12
0,2	0,81	0,37	0,49	23,97	12
0,3	1,11	0,39	0,52	23,97	12
0,4	1,82	0,41	0,56	23,97	12
0,5	2,23	0,81	0,87	23,97	12
0,6	2,64	1,19	1,15	23,97	12
0,7	3,01	1,80	1,79	23,97	12
0,8	3,37	2,03	2,15	23,97	12
0,9	3,97	2,60	2,85	23,97	12
1,0	4,20	2,94	3,18	23,97	12
1,1	4,74	3,28	3,52	23,97	12
1,2	5,05	3,59	3,72	23,97	12
1,3	5,67	3,89	3,92	23,97	12
1,4	5,97	4,40	4,43	23,97	12
1,5	6,28	4,59	4,73	23,97	12
1,6	6,46	5,06	5,32	23,97	12
1,7	6,65	5,32	5,60	23,97	12
1,8	7,08	5,85	5,88	23,97	12
1,9	7,34	6,12	6,07	23,97	12
2,0	7,83	6,38	6,25	23,97	12
2,1	8,06	6,54	6,70	23,97	12
2,2	8,46	6,71	6,95	23,97	12
2,3	8,61	7,12	7,45	23,97	12
2,4	8,77	7,37	7,70	23,97	12
2,5	8,97	7,87	8,10	23,97	12
2,6	9,18	8,11	8,26	23,97	12
2,7	9,59	8,36	8,65	23,97	12
2,8	9,80	8,50	8,89	23,97	12
2,9	10,15	8,65	9,12	23,97	12
3,0	10,28	9,02	9,32	23,97	12
3,1	10,42	9,24	9,52	23,97	12
3,2	10,60	9,68	9,86	23,97	12
3,3	10,79	9,89	9,99	23,97	12
3,4	11,15	10,24	10,32	23,97	12
3,5	11,33	10,38	10,52	23,97	12
3,6	11,63	10,52	10,89	23,97	12
3,7	11,76	10,74	11,07	23,97	12
3,8	12,05	10,96	11,25	23,97	12
3,9	12,23	11,39	11,40	23,97	12
4,0	12,40	11,59	11,54	23,97	12
4,1	12,57	11,92	11,89	23,97	12
4,2	12,74	12,05	12,08	23,97	12
4,3	13,10	12,17	12,45	23,97	12
4,4	13,30	12,37	12,62	23,97	12
4,5	13,60	12,58	12,92	23,97	12
4,6	13,70	12,98	13,04	23,97	12
4,7	13,81	13,17	13,35	23,97	12
4,8	13,98	13,49	13,54	23,97	12
4,9	14,15	13,62	13,72	23,97	12
5,0	14,49	13,95	13,89	23,97	12
5,1	14,67	14,16	14,06	23,97	12
5,2	14,95	14,37	14,42	23,97	12
5,3	15,06	14,56	14,62	23,97	12
5,4	15,34	14,75	14,93	23,97	12
5,5	15,50	15,05	15,04	23,97	12
5,6	15,67	15,17	15,28	23,97	12
5,7	15,82	15,45	15,41	23,97	12
5,8	15,98	15,62	15,53	23,97	12
5,9	16,21	15,95	15,70	23,97	12
6,0	16,28	16,11	15,88	23,97	12
6,1	16,47	16,27	16,15	23,97	12
6,2	16,59	16,38	16,24	23,97	12
6,3	16,76	16,50	16,51	23,97	12
6,4	16,83	16,78	16,67	23,97	12
6,5	16,89	16,96	16,84	23,97	12
6,6	17,00	17,29	17,00	23,97	12
6,7	17,11	17,46	17,17	23,97	12
6,8	17,38	17,77	17,43	23,97	12
6,9	17,55	17,91	17,52	23,97	12
7,0	17,71	18,06	17,73	23,97	12
7,1	17,79	18,17	17,85	23,97	12
7,2	17,88	18,28	18,12	23,97	12
7,3	18,10	18,52	18,27	23,97	12
7,4	18,25	18,66	18,43	23,97	12
7,5	18,52	18,97	18,51	23,97	12
7,6	18,65	19,16	18,59	23,97	12
7,7	18,78	19,45	18,84	23,97	12
7,8	18,85	19,55	19,01	23,97	12
7,9	18,92	19,66	19,33	23,97	12
8,0	19,15	19,80	19,49	23,97	12
8,1	19,30	19,95	19,74	23,97	12
8,2	19,51	20,23	19,85	23,97	12
8,3	19,55	20,36	19,95	23,97	12
8,4	19,71	20,60	20,06	23,97	12
8,5	19,81	20,71	20,17	23,97	12
8,6	20,07	20,94	20,42	23,97	12
8,7	20,21	21,08	20,57	23,97	12
8,8	20,36	21,21	20,79	23,97	12
8,9	20,49	21,37	20,86	23,97	12
9,0	20,63	21,53	20,94	23,97	12
9,1	20,88	21,79	21,12	23,97	12
9,2	21,00	21,88	21,29	23,97	12
9,3	21,32	22,11	21,60	23,97	12
9,4	21,51	22,25	21,73	23,97	12
9,5	21,87	22,38	21,96	23,97	12
9,6	22,04	22,49	22,06	23,97	12
9,7	22,20	22,61	22,27	23,97	12
9,8	22,28	22,82	22,38	23,97	12
9,9	22,37	23,03	22,49	23,97	12
10,0	22,60		22,61	23,97	12
10,1	22,76		22,74	23,97	12
10,2	23,11		22,93	23,97	12
10,3	23,31		23,01	23,97	12
10,4	23,59		23,25	23,97	12
10,5	23,76		23,42	23,97	12
10,6			23,59	23,97	12
10,7			23,73	23,97	12
10,8			23,86	23,97	12
10,9			24,09	23,97	12
11,0			24,18	23,97	12
11,1			24,36	23,97	12
11,2			24,44	23,97	12
11,3			24,66	23,97	12
11,4			24,79	23,97	12
11,5			24,92	23,97	12
11,6			24,99	23,97	12
11,7			25,13	23,97	12
